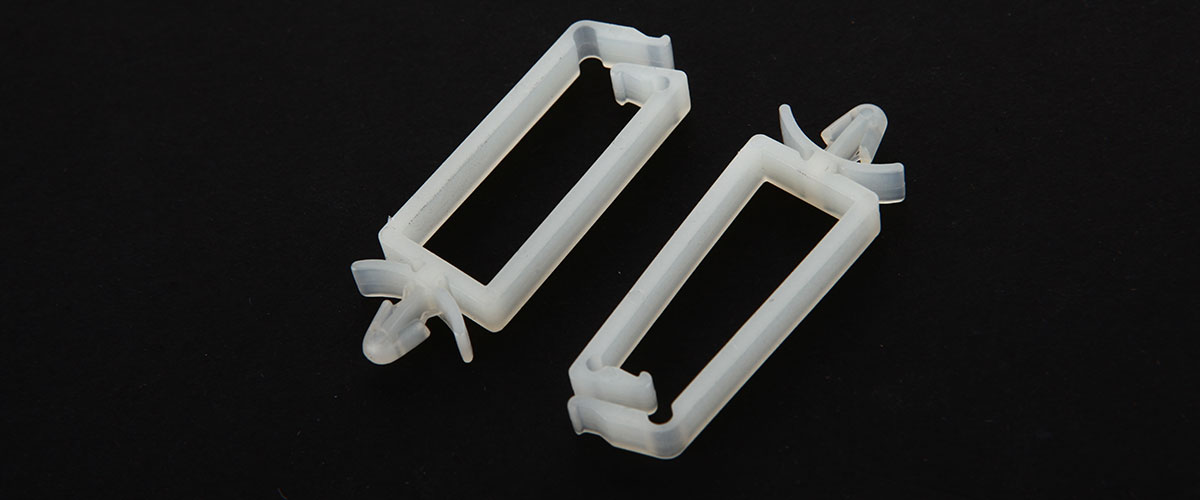

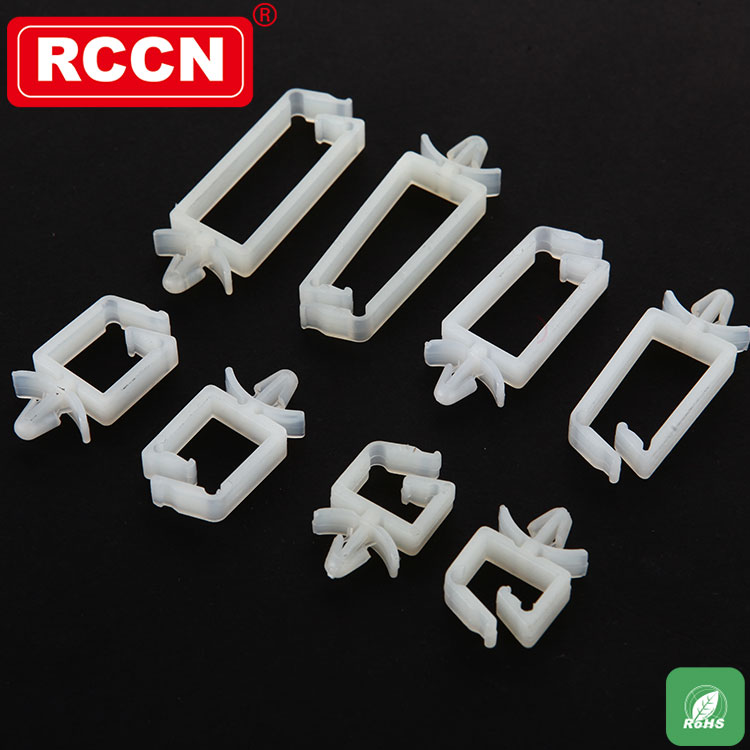

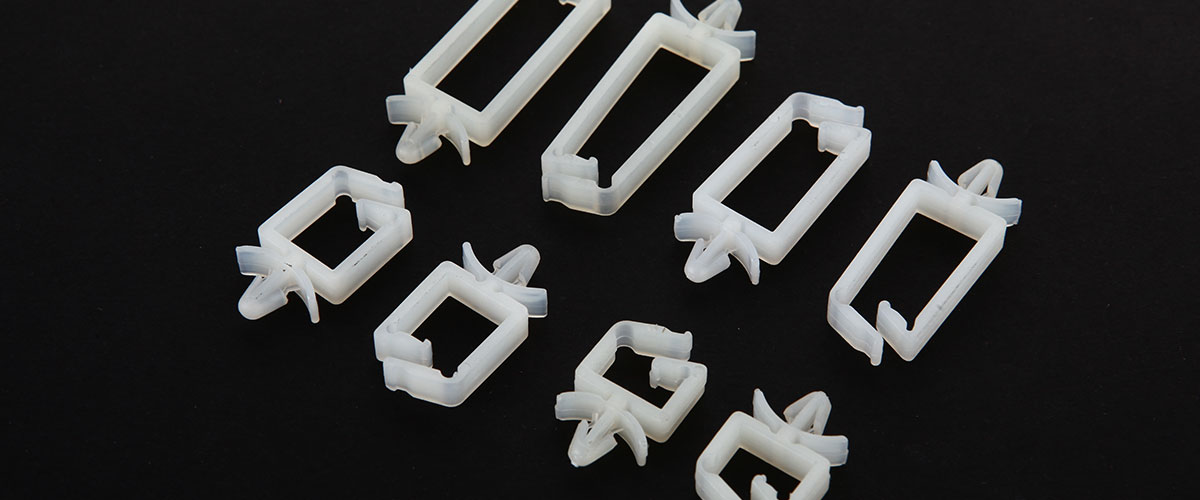

RCCN KWS Locking Wires Addle

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant
this is old design, for new design,
please check LWS series/page B94
Page number:B74

KWS Locking Wires Addle KWS

Spécification

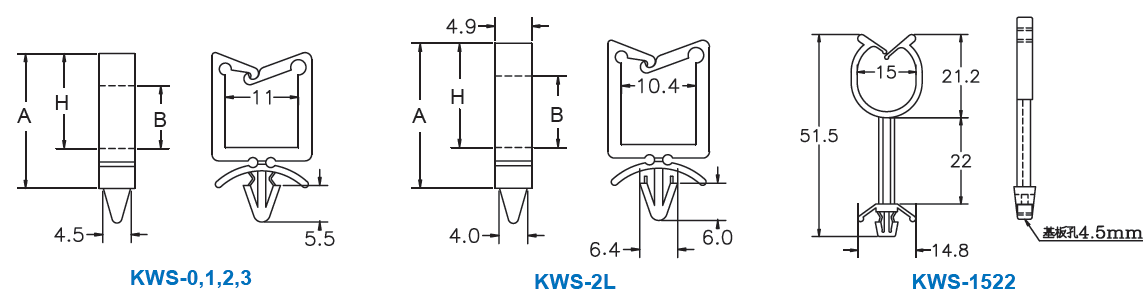

Item No.	Dimension						Packing
Item No.	H	A	B	W	Panel hole	Suitable panel thickness	Packing
KWS-0	9.0	13.0	4.0	11.0	4.8	2.0	100pcs (1000pcs)
KWS-1	14.2	19.0	10.5	11.0	4.8	2.0
KWS-2	23.0	27.0	19.0	11.0	4.8	2.0
KWS-2L	15.0	18.0	12.0	10.4	4.8	4.0
KWS-3	31.1	35.8	28.0	11.0	4.8	2.0
KWS-1522	如图				4.5	2.0
